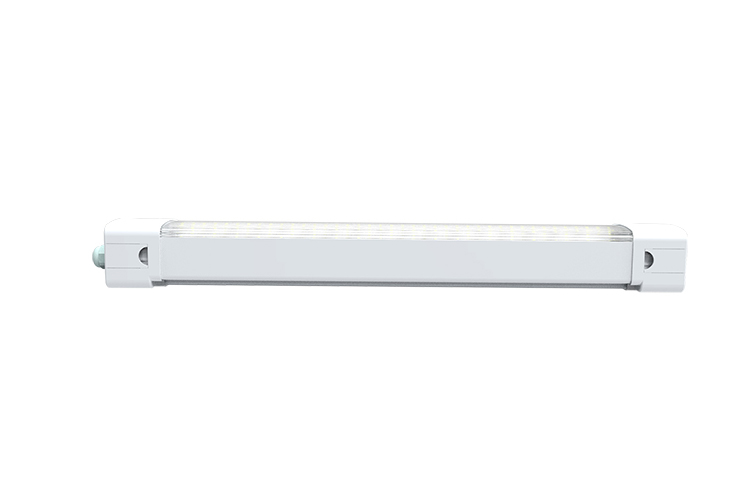

Led Tube IP65 Fixture 600mm 20W LED For Warehouse Waterproof Light
Product Details:
| Item No. | FG06-01AZ-S600-20W |
| Input Voltage | AC100-240V |
| Frequency Range | 50-60HZ |
| Power Factor | ≥95 |
| Power | 20W |
| Chip Type | SMD2835 |
| Chip Wattage | 0.2W |
| Dimension(mm) | 600*86*68mm |
| Carton Size(mm) | 71*28*25CM 9pcs/Carton |
| N.W/Carton | 1500g |
| G.W/Carton | 1680g |
| CRI | >80 |
| CCT | 3000-6500K |
| Luminous Flux(LM) | 2200 |
| Operating Humidity | 20%-90%RH |
| Protection Grade | IP65 |
| Working Temperature | -20° ~ 50° |
| Life Time Ta=25℃ | 50,000H |
| Driver Efficiency | 90% |
| Dimmable Option | 0-10v dimmable/Non-dimmable |
| LED Brand | Osram |
| Driver Brand | Lifud |
| Certificate | CE & RoHS |
Features:
1. 6063 aviation aluminum with good heat dissipation.
2. Essay installation to save labor cost.
3. Simple maintenance to save maintenance cost.
4. It could replace easily the PCB board and drivers.
5. EMC approved driver. PF>0.9.
6. Clear and milky cover for options.
7. Easy wiring connector.
8. Simple and elegant tri-proof housing.
9. IP65 structure. Fire-proof PC cover.
10.Connectable and unconnectable are available.
Descriptions:
It widely applied in commercial lighting, public lighting, and
industrial lightings, such as supermarkets, exhibition hall,
parking lot, tunnel, train station, airport, factory, warehouse,
and food processing plant.
FULGORLED Tri-proof Lights are Water-proof, Dust-proof, Damp-proof
fixture. Can be connected in series without a tool, save a lot of
labor cost. Suitable for parking lots, warehouse, cold storage,
poultry shed, barn, and farmhouse. Using 2835SMD, light efficiency
up to 150lm/w. The driver passes CE, reliable quality, offers 5
years warranty.
The outer shell adopts optical polar PC materials double-color
extrusion process and has great weather resistance.
Plug adopts the innovative clip-on installment method and hits
screws without using tools, which facilitates field operation.
The lamp plug is equipped with a respirator, making the lamp
permeable, dry, and causing no mist. Compared with a traditional
plug, it lowers 3-5 degrees of heat dissipation.
Tri-proof lights mean waterproof, dustproof, and corrosion-proof.
They are made with special corrosion-proof materials and a silicone
sealing ring to realize protection requirements for the fixtures.
What is the application?
Daylight White light Output for commercial and high-end domestic
applications Engineered to a high standard with CB / TUV / UL
approval – CE marked and approved, MoonLED manufacturing PIR sensor
LED Tri-proof Lamp, Microwave sensor LED tri-proof lamp, Radar
sensor led tri-proof light for Underground Parking Lot.
Water-proof lamp IP65. The lamp has waterproof, dust, and corrosion
prevention properties. (IK10/09)
The transparent part of the lampshade adopts a lamp optical
principle optimization design. The light is even, soft, and has no
glare.
Installment method: adopt multiple installment methods as required
such as suspended ceiling and ceiling mounted.
Our service:
FULGORLED has worked hard to make a name for ourselves as a leading
manufacturer of waterproof LED Batten lights for commercial and
industrial applications.
If you need an excellent source of illumination for years to come,
please contact us. We have sales who have engaged in LED for about
8 years to help you with custom-made sales solutions.
Your inquiry related to our products or prices will be replied in
24 hours.
