    100Watt Linear High Bay Led Lights IP65 Industrial SMD3030 Meanwell Driver

    Ask Lasest Price
    Brand Name : LEDFULGOR
    Model Number : FG04-2222-100w
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 40,000 pcs per month
    Delivery Time : 10 - 15 days
    • Product Details
    • Company Profile

    100Watt Linear High Bay Led Lights IP65 Industrial SMD3030 Meanwell Driver

    100W Linear High Bay Led Light With Waterproof IP65 Industrial LED Lighting


    Product Parameters:


    Model NumberFG04-2222-100w
    Brand NameLEDFULGOR
    VoltageAC220-240V 50/60HZ
    MaterialAluminum
    LED SourceSMD3030
    LED DriverMeanwell
    Power100w
    dimmingNo dimming, 0-10Vdimming, DALI dimming selectable
    Luminous Efficacy130lm/w
    Color Temperature(CCT)3000K/4000K/5700K selectable
    CRI (Ra>)≥80
    PF>0.95
    Luminous Flux13000lm
    HousingAluminum Black/red/Customized Color
    Beam Angle90*90°/60*100°/70*140°selectable
    Working Temperature-30℃ to +70℃
    IP RatingIP65
    Working Lifetime50000h
    Warranty5-years
    Dimensionwithout bracket:318*285*133mm Including bracket:425*285*165mm
    Packing SizeL35.5*W33*H17cm

    Features:


    1. High Brightness, more energy saving.

    2. 50w,100w, 150w, 200w, 250w,300w,400w optional.

    3. No dimming, 0-10dimming, DALI Dimmer selectable.

    4. Beam Angle:90*90°/60*100°/70*145°optional

    5. Multiple Housing color selectable: BLACK, RED, BLUE

    6. Excellent LED chip, Low-energy consumption, long life span.

    7. Installation: Suspended, Surface Mounted

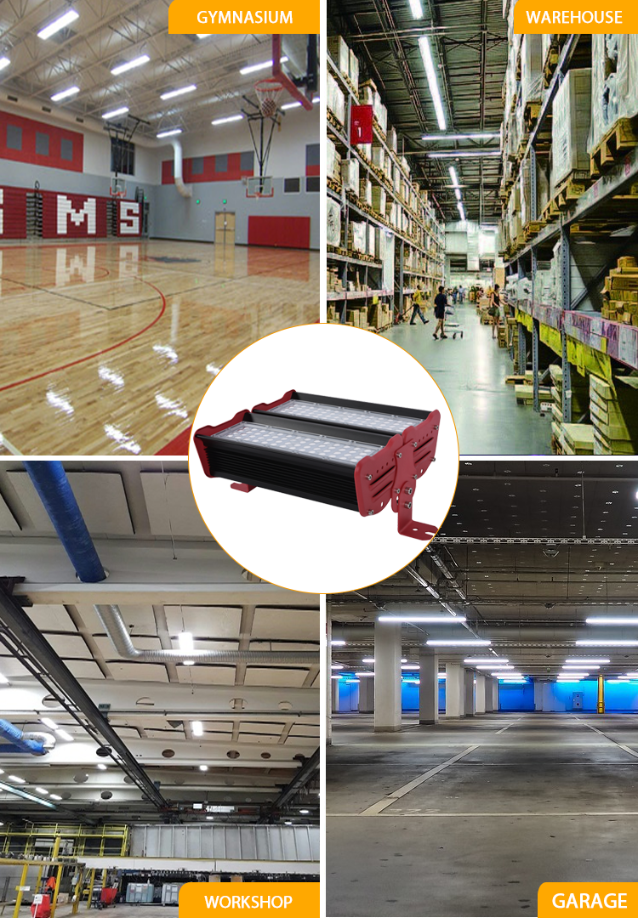

    8.Application: Warehouse, Factory workshop, Garage, Market, Airport, Gymnasium, etc.


    Packaging & Delivery:

    Packaging Details:
    Packing:
    L35.5*W33*H17CM
    N.W.: 3.8KG(With Bracket, no hanging chain)
    G.W.: 4.4KG(With Bracket, no hanging chain)
    1. One pcs one packing of high bay led lights
    2. Standard exporting package.
    3. A customized package is acceptable.
    Port
    Guangzhou, Shenzhen
    Lead Time :
    Quantity(Pieces)1 - 1011 - 100101 - 500>500
    Est. Time(days)71530To be negotiated

    Installation Details:


    Hanging Installation

    1. Open the package and take out the handing chain from the accessory kit, then fix it at the correct place.
    2. Fix the lamp on the handing chain.
    3. Open the waterproof junction box and join the wires.

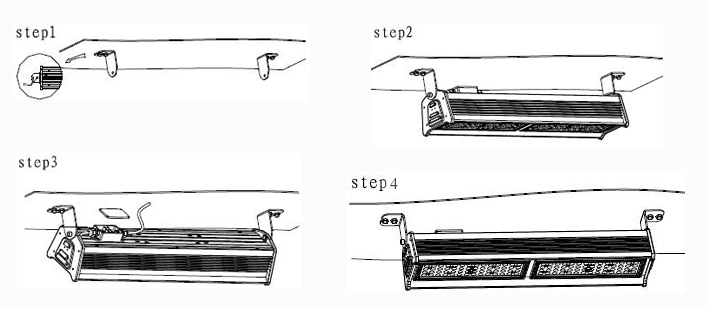

    Bracket Installation

    1. Open the package and take out the install bracket and screws from the accessory kit, then fix it at the correct place.
    2. Fix the lamp on the installed bracket.
    3. Rotating the angle of the lamp, join the wires into the junction box.
    4. Adjust the brightness, then installation finished.
