Brand Name : | LEDFULGOR |
Model Number : | FG03-4835-9P |
Certification : | CE,SAA |
Price : | Negotiation |
Payment Terms : | T/T |
Supply Ability : | 40,000 pcs per month |
Delivery Time : | 8 - 12 work days |

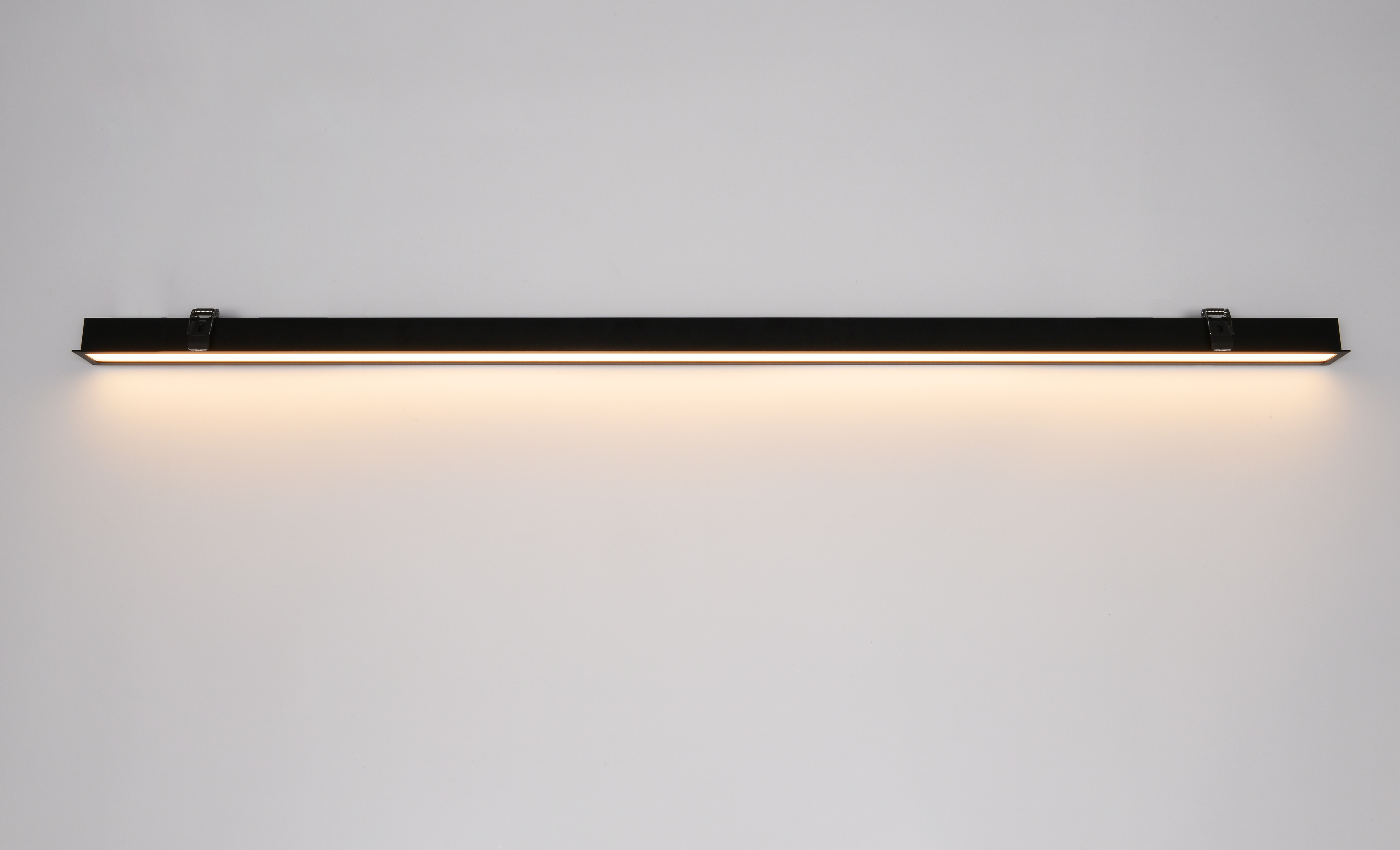

120° Energy Saving 90-100lm/W LED Linear Lighting Fixture SMD3030/2835 Aluminum White/Black
Description:
Model Number | FG03-4835-9P |
Brand Name | LED Fulgor |
Voltage | 220-240VAC 50/60Hz |
Material | Aluminum |
LED Source | SMD3030/2835 |
LED Driver | Lifud |
Power | 36w |
dimming | No dimming, 0-10Vdimmer, DALI dimmer selectable |
Lighting Effect | 90-100lm/w |
Color Temperature(CCT) | 3000K/4000K/5700K selectable |
CRI (Ra>) | ≥80 |
UGR | 19 |
Luminous Flux | 3400lm |
Housing | Aluminum White/Black |
Beam Angle | 120° |
Working Temperature | -20℃ to 55℃ |
IP Rating | IP20 |
Working Lifetime | 50000h |
Warranty | 3-years |
Dimension | L1209*W48*H35mm |
Cut-out | L1197*W43mm |
Packing Size | Inner Box: L130*W13*H7cm Outter Box:L132*W26.5*H15.5cm 8pcs/CTNS |
Feature:
1. 48mm slim recessed linear lighting solution, designed to provide
beautiful, dotless lighting.
2. High end and minimalist design, extrusion aluminum construction.
3. No dimming, 0-10v dimming or DALI dimming for optional.
4. Certificated external Lifud driver and famous branded LED chips.
5. Low glare less than 20.
6. Easy Installation: Recessed mounted.
7. Light can be Combine freely among Spotlight, Floodlight, Track
light and Blind cover for different applications.
8. Applications: office, gallery, hotel, restaurant, school,
warehouse, shop, market, etc.
General troubleshooting:
1. If the lamp is installed properly, Please figure out whether the
failure is caused by the following situations. If all following
resolutions do not work, please stop using immediately and contact
professionals or retailers for help.
2. If the lamp does not work, please cut off the power and then
check whether the power cord of the lamp is properly connected with
the mains supply.
3. If connected properly, please ask a professional to check the
input voltage or circuit.
Own patent design:
1. Unique nice industrial looking.
2. Great heat dissipation.
3. 120° beam angles.
4. 90lm/w less energy more light.
5. Lifud driver and SMD3030 chip.
![]() |
