    LED Grille Downlight Recessed Square Ceiling 9w

    Ask Lasest Price
    Brand Name : LEDFULGOR
    Model Number : FG05-EG03-9W
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 50,000 pcs per month
    Delivery Time : 10-15 days
    • Product Details
    • Company Profile

    LED Grille Downlight Recessed Square Ceiling 9w

    High Quality Led Downlight LED Grille Downlight Recessed Square Ceiling 9w


    Product Parameters:


    Model NumberFG05-EG06-9W
    Brand NameLEDFULGOR
    VoltageAC100-277V 50/60HZ
    MaterialAluminum + PMMA
    LED SourceSMD5050
    LED DriverLifud
    Power9w
    dimmingNo dimming/TRIAC/0-10V/ DALI dimming optional
    Luminous Efficacy60-70lm/w
    Color Temperature(CCT)3000K/4000K/5700K selectable
    CRI (Ra>)≥80
    UGR<16
    Luminous Flux630lm
    HousingAluminum White/Black
    Beam Angle12°/24°/38°/50°/50*50°, etc
    Working Temperature-20℃ to +55℃
    IP RatingIP20
    Working Lifetime50000h
    Warranty3-years
    DimensionL130*W54*H47mm
    Cut-outL123*W46mm
    Packing SizeL44*W30*H20.5cm 30pcs/CTNS

    Features:

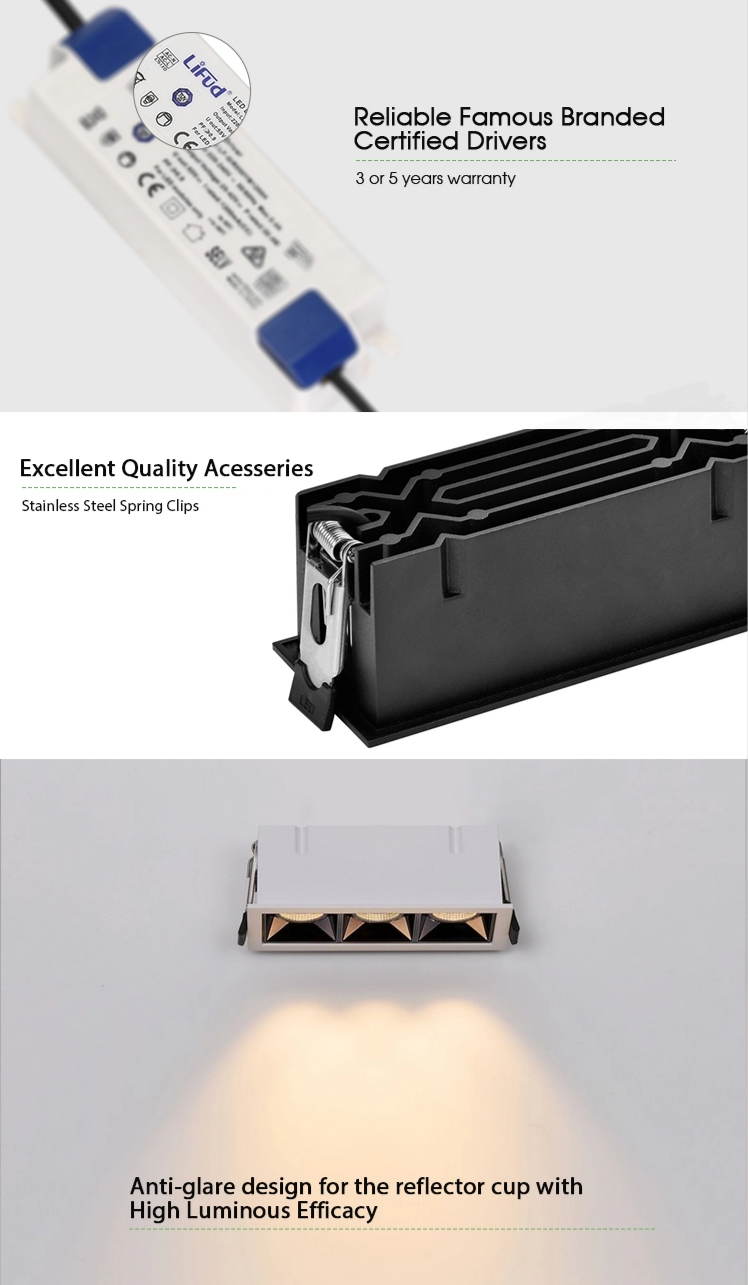

    1. Die Casting Aluminum Housing with excellent heat dissipation.

    2. Low Glare less than 20.

    3. Flexible combination for install.

    4. CRI(Ra)>80.

    5. Multi Beam Angle selectable:12°/24°/38°/50°Square 50°* 50°70°* 70°Rectangle35°* 70°Asymmetrical80*100*15°.

    6. Dimming: No dimming/TRIAC/0-10V/ DALI dimming optional.

    7. Certificated famous brand LED Chips and Driver.

    8. Recessed LED lighting solutions to residential and hospitality venues and boutiques.


    Descriptions:


    a. Energy-saving up to 80%, high luminous intensity;

    b. Use Taiwan Lustrous COB LED and high-quality reflector with strong light transmittance to attain good light with the distribution of light uniformity for illuminating;

    c. Use refined aluminum-alloy shell with great heat emission;

    d. Wide voltage AC85-265V,50/60Hz, constant current driving way guarantees long lifespan;

    e. With high-efficiency heat protect the system, can work under unstable voltage; High-strength aluminum alloy housing, high purity aluminum heat sink, vacuum coating reflector, high-power integrated encapsulated LED light source, high efficiency LED driver.


    PowerLumenLED ChipsBeam angleSize(mm)Cut Out(mm)
    (1*1)-5W350LMSMD5050

    12°/24°/38°/

    50°

    Square

    50°* 50°

    70°* 70°

    Rectangle

    35°* 70°

    Asymmetrical

    80*100*15°

    54*54*4746*48
    (1*3)-9W630LMSMD5050130*54*47123*46
    (2*2)-12W840LMSMD505093*93*4788*88
    (1*5)-15W1050LMSMD5050205*54*47200*50
    (3*3)-25W1750LMSMD5050130*130*47125*125
    (2*5)-30W2100LMSMD5050395*54*47390*50
    (1*3)-9W A630LMSMD5050143*68*50135*55
    (1*3)-15W A1050LMSMD5050205*54*47200*50
