Aluminum CE Office IP20 Surface Mounted Linear LED Lights 4000K
Long Life 50W
Product Parameters:
Measurement: |
Product name | LED Linear Light - 58100 |
Product Model No | FG03-58100-5P |
Housing material | 6063-T5 |
Surface treatment | Powder-coated or Brushed aluminum |
CCT | 3000K,4000K,6000K |
LEDs | 5050SMD (Osram chip) |
LEDs Life Span | 50000H |
Input Voltage | 100-277V/200-240V 50/60HZ |
Power supplier | Flicker-free |
Luminous Efficacy(lm/w) | 65 - 70lm/W |
Color Render (CRI) | RA≥80 or RA≥90 |
Power factor(PF) | ≥0.9 |
Optional features : | 0-10V dimming, DALI dimming |
IP Rated | IP20 |
Working Temp(℃) | Surrounding Ambiance Temperature -25°~55°Degree Celsius |
Body Material | aluminum, PC |
Color Option(shell) | Silver, White, Black |
Certification | CE, RoHS |
Limited Warranty | 3 Years |
Feature:
1. Original Epistar 2835SMD chips, with a high bright light source
and Energy-efficient.
2. Perfect lighting configuration design, light soft, no dark
areas, anti-glare function.
3. Milky PC diffuser, high light transmittance, anti-corrosion, and
dust-proof.
4. High CRI, intuitive display, clear and different color
temperature for option.
5. Easy installation and maintenance, reduced to your labor cost;
6. Available lengths 600mm, 1200mm, 1500mm for choice;
7. Light body color: Black, White, and Silver available
8. Traci, 0-10V, dimming and DALI dimming for option;

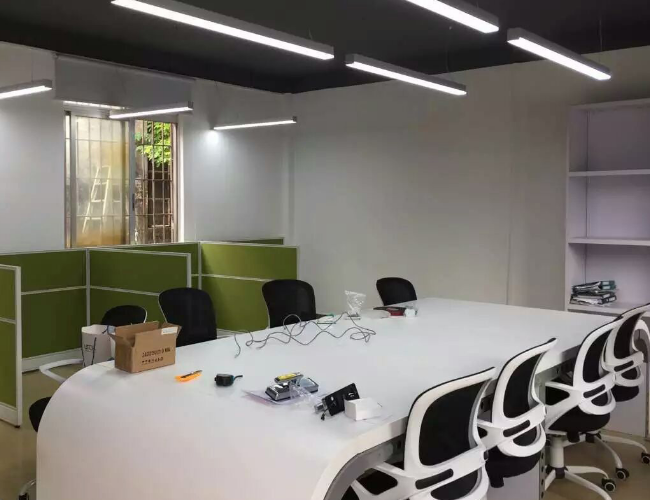

9. Application: Offices, meeting rooms, Supermarkets, schools,
libraries and exercise rooms, etc.
Products Description:
our LED linear light fixtures merge high performance with beautiful
design. Featuring high color rendering, high-performing dimming
options, and high-efficiency, our LED line fixtures are an
architectural-grade linear lighting solution. Available housing
color in White, Black, and Silver, adaptable with any design or
space. No matter you want to install it as a single luminaire or
for a continuous row lighting application, our LED linear light
system can make it happen.
LED linear trunking systems are continuous-row lighting assemblies
that utilize trunking rails to integrate individual lighting
fixtures/subassemblies which may include LED light modules, power
supplies, lighting controls, emergency battery packs, and/or other
functions. The flexible trunking systems can be configured in a
myriad of variants to meet challenging demands for interior
lighting in commercial and industrial buildings.
Applications:
Unparalleled industrial aesthetics and lighting performance. LED
linear trunking systems provide a sophisticated appearance with
utmost linear consistency that is not possible with fluorescent
lighting. The seamless trunking design allows for invisibly
interconnecting the linear LED fixtures into rows of any desired
length without visual interruption. The sleek, clean design and
streamlined continuous lighting create cohesion of industrial
aesthetics that ensures application across multiple sectors. The
unparalleled combination of industrial design and lighting
performance is highly coveted by lighting designers and facilities
managers.
Many commercial buildings and industrial facilities are often
voluminous and come with complex infrastructure that demands
attention to systems integration and planning. The lighting design
for these spaces is not simply aimed to meet quality, quantity, and
operational criteria. The interiors of large commercial buildings,
such as supermarkets, hypermarkets, department stores, warehouses,
distribution centers, trade centers, exhibition halls, office
buildings, and the like are more attuned to networking and control
capabilities of the lighting devices as well as the overall
life-cycle costs for lighting.
